Aerostone

Natural stone. Lighter. Stronger. Safer.

Un panel de AEROSTONE gira y se despieza: piedra natural por la cara, piel estructural y núcleo en panal detrás.

Lighter.

One person lifts a large-format panel. The same format in solid stone needs lifting equipment and two operatives.

23 kg/m²the assembly, against the 82 of 30 mm solid stone

up to 70% lessweight on the structure of the building

Stronger.

What decides the life of a panel is not the stone: it is the bond. It is tested by ageing it on purpose, and then measured again.

1.6 MPabond after thermal shock ageing · EN 14066

1.7 MPaafter salt crystallisation: the same value as before the test · EN 12370

Resistantto frost · UNE EN 12371

2.1%water absorption · UNE EN 13755

Safer.

Fire · Reaction B-s1, d0 to EN 13501: it does not contribute to the fire, it gives off hardly any smoke and it does not drip.

Wind · Ready for high loads. On a ventilated façade suction governs over weight, and it is calculated project by project.

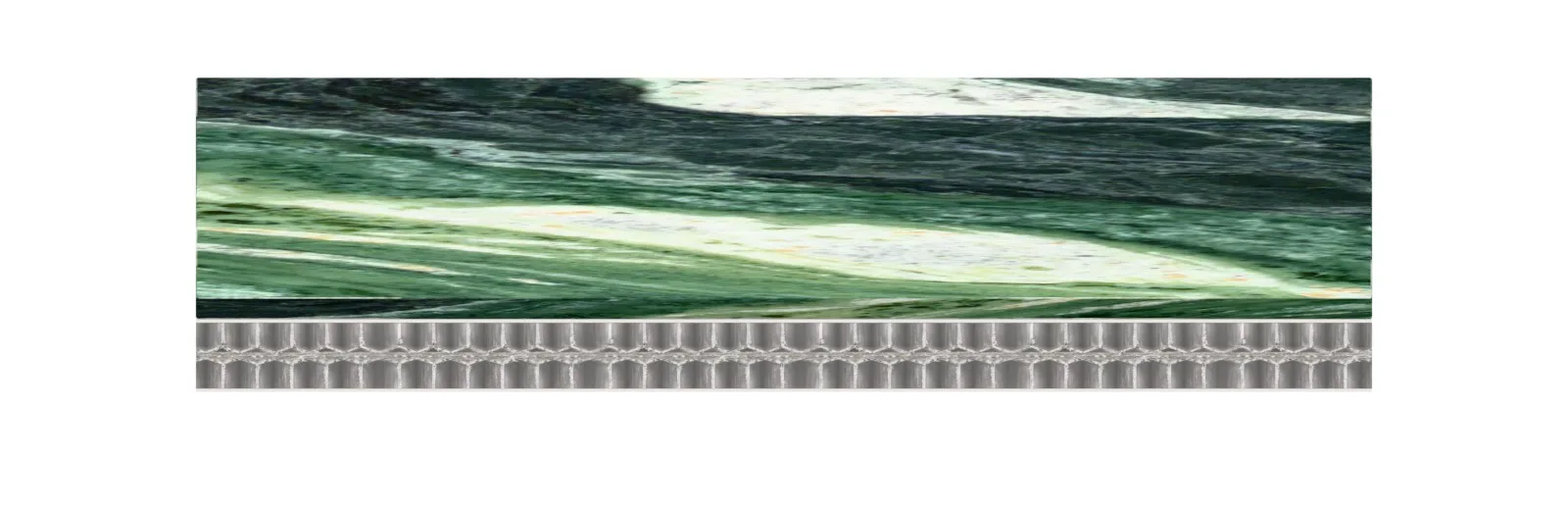

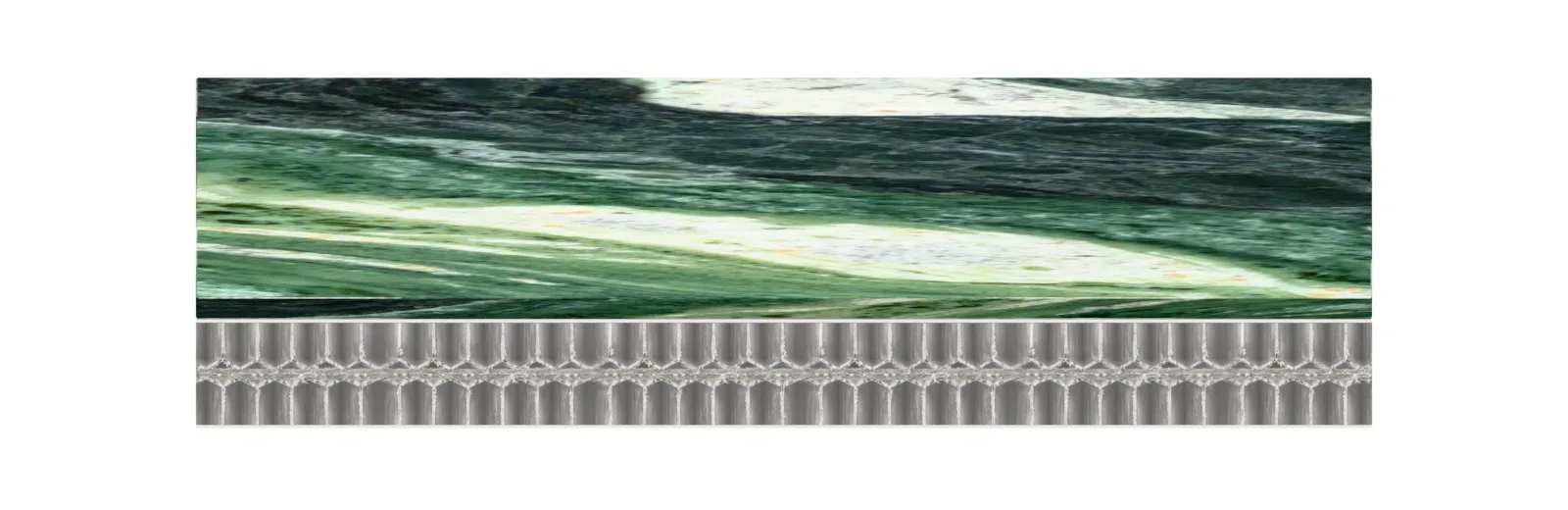

Five thicknesses, four panels.

Thickness

Panel

AluminiumGlass fibreUltracompactTranslucent

Stone where there was no stone.

Weight is what decided how far natural stone could go. With 23 kg/m² instead of 82, that boundary moves — and where the fixing has to have margin to spare, what weighs least demands least.

up to 2900 × 1450standard format, in mm

made to measurethe cut and the piece are made for the project

Ventilated façadeWeight that does not hang on the façade does not have to be held up.

Dry lining and interior claddingWalls and ceilings where the floor slab will not take solid stone.

Yachts and marineWhere every kilo is paid for in range.

LiftsIn a car, its own weight comes off the payload.

RestorationPutting stone on a building that will take no more load.

Furniture and worktopsLarge pieces that one person handles alone.

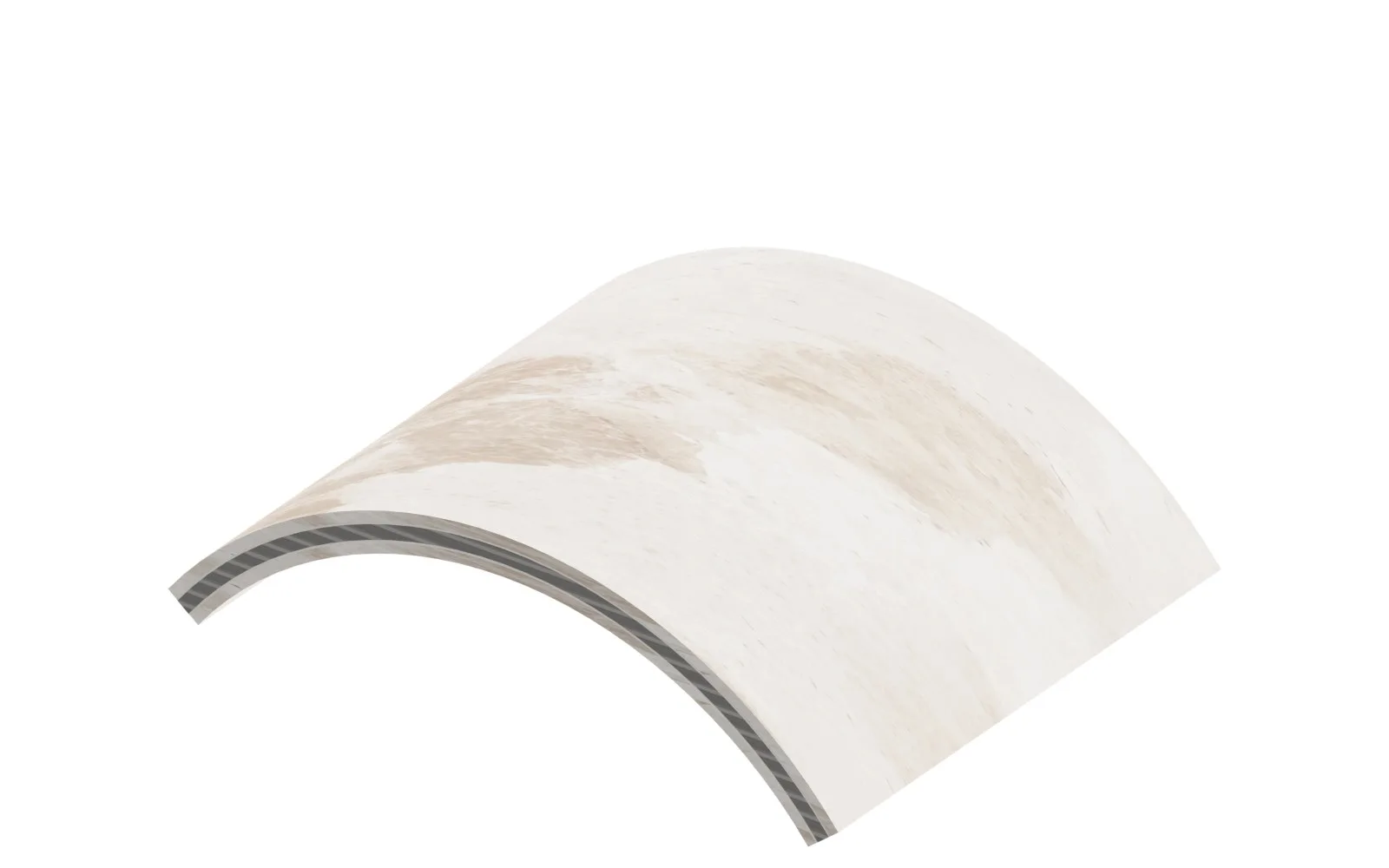

Not everything is a flat panel.

View

Shape

For the most demanding designs. Turn it and zoom in.

Reference projects

Projects the ORION team has taken part in.

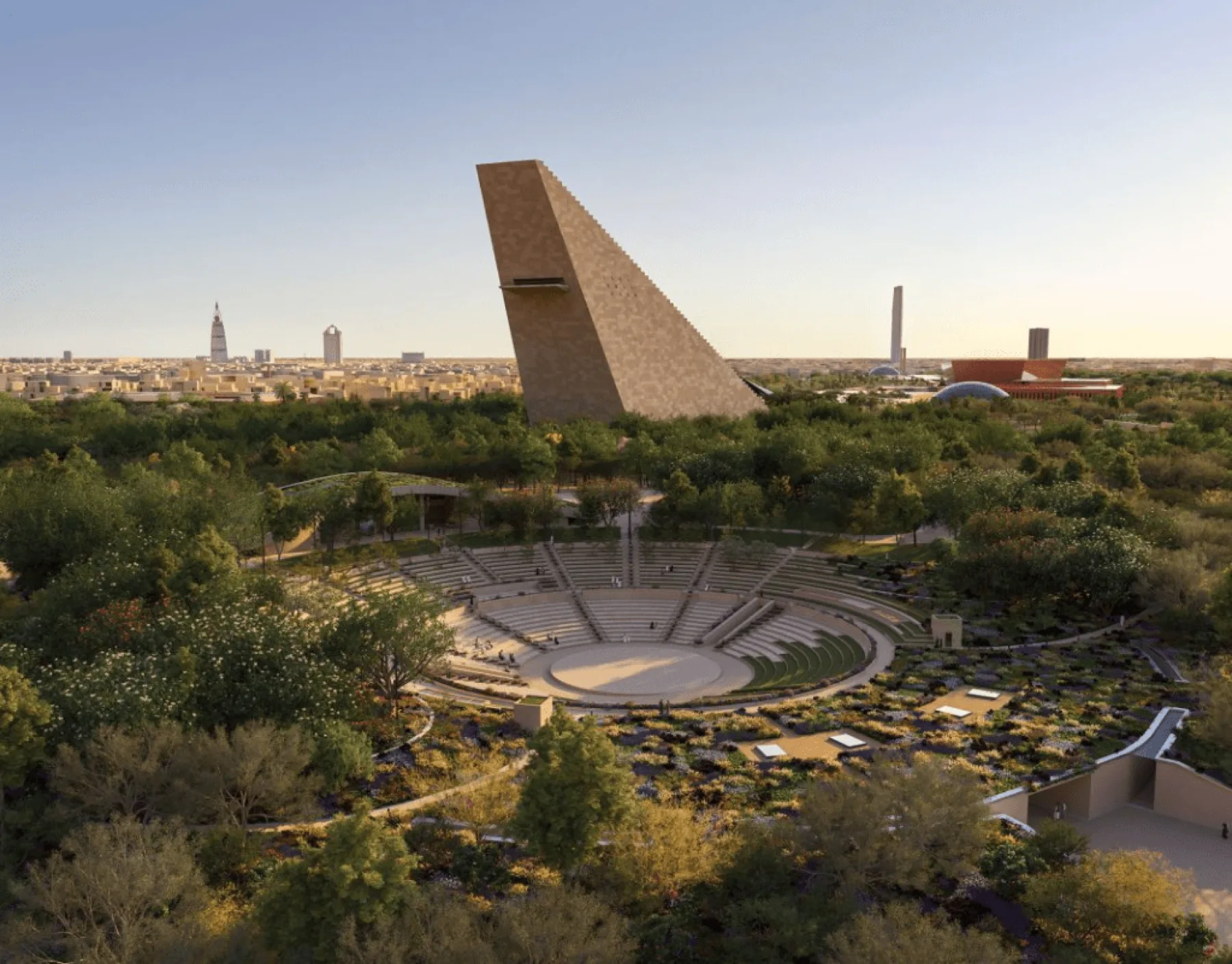

King Salman Park. Riyadh, Saudi Arabia. Exterior in Saudi Stone. — **King Salman Park**Riyadh, Saudi Arabia. Exterior in Saudi Stone.

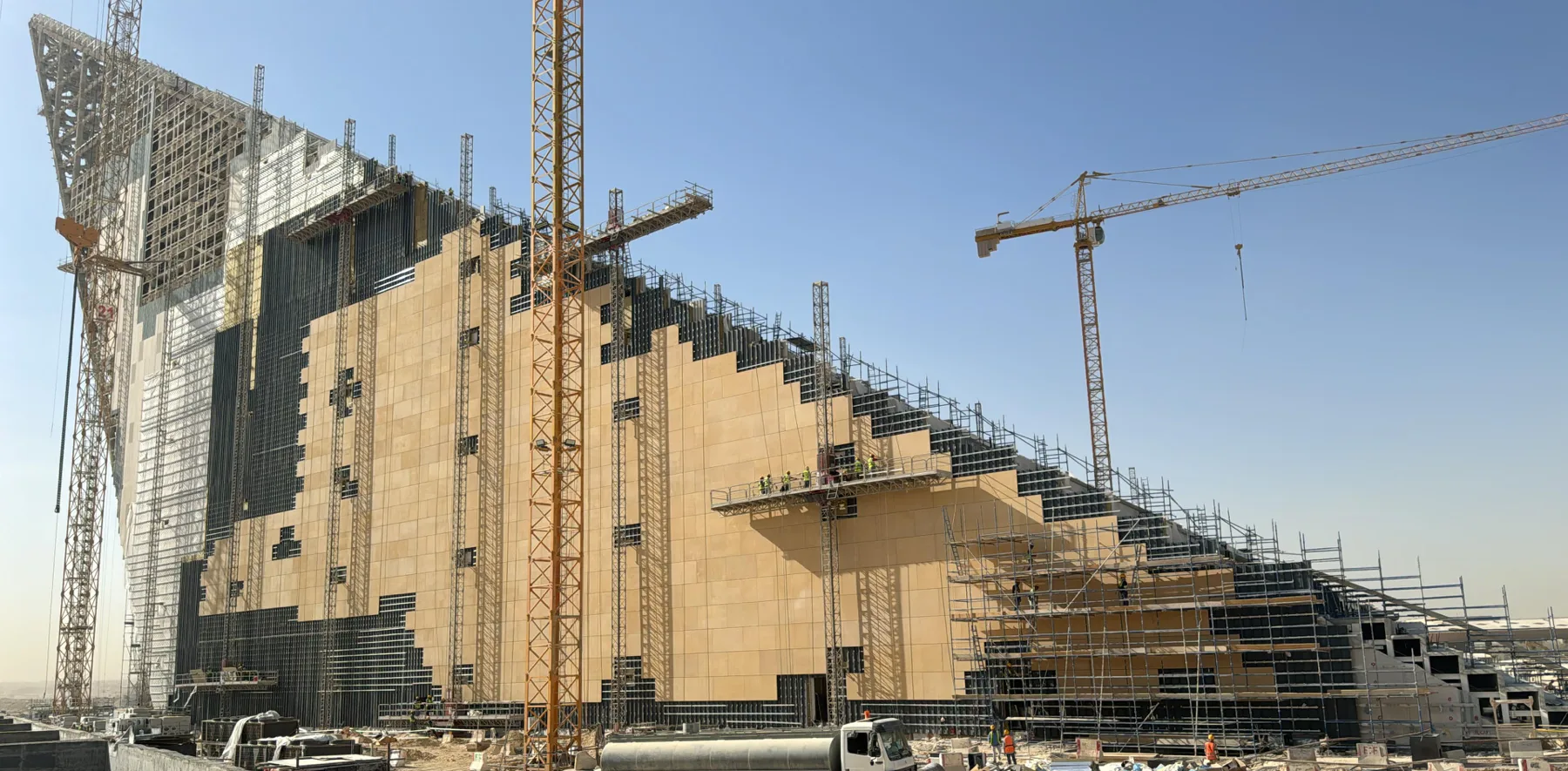

King Salman Park, under construction. The wall being dressed in stone, with the cranes still up. — **King Salman Park, under construction**The wall being dressed in stone, with the cranes still up.

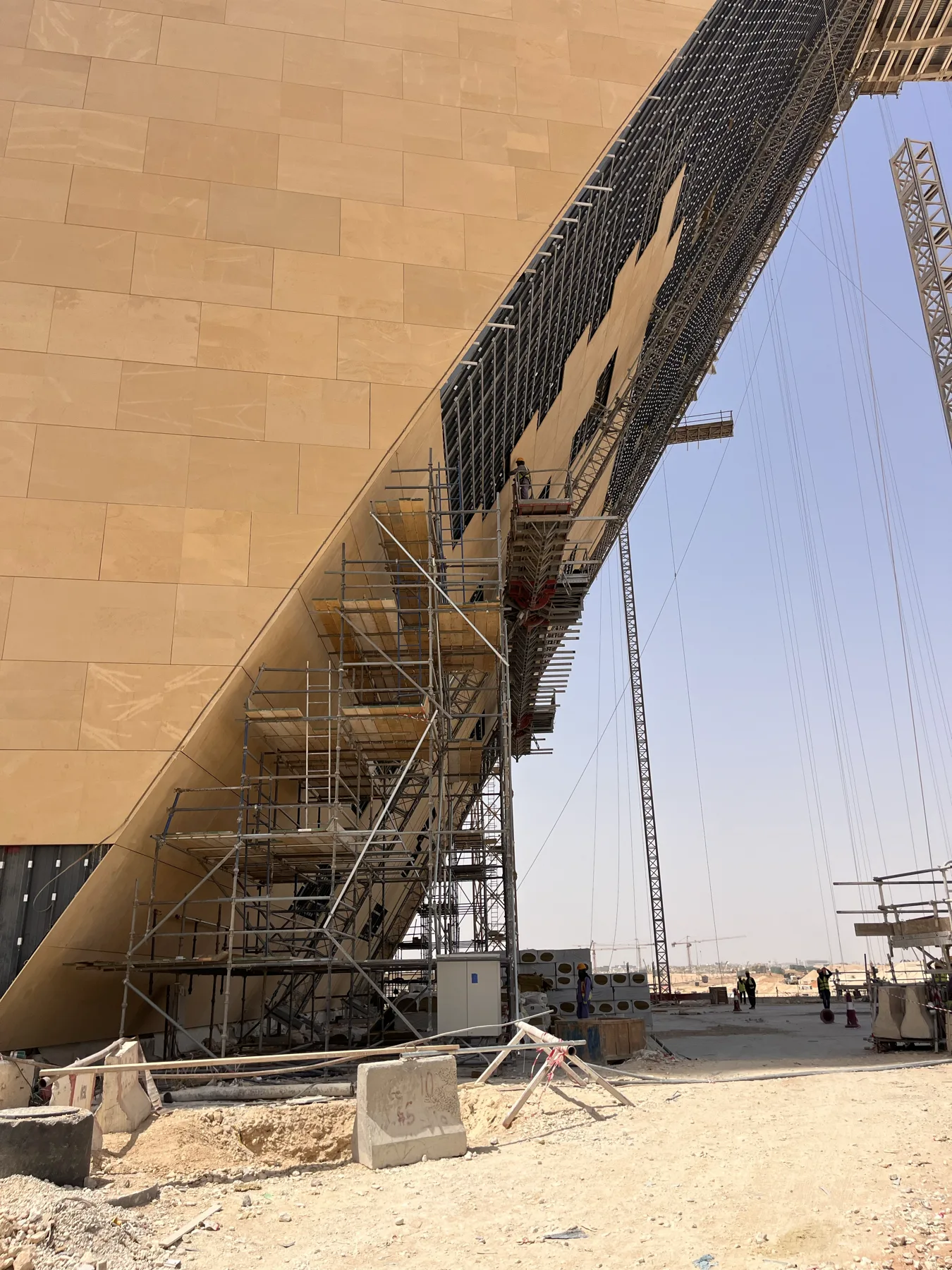

King Salman Park, from below. The sloping soffit and the substructure before it is closed up. — **King Salman Park, from below**The sloping soffit and the substructure before it is closed up.

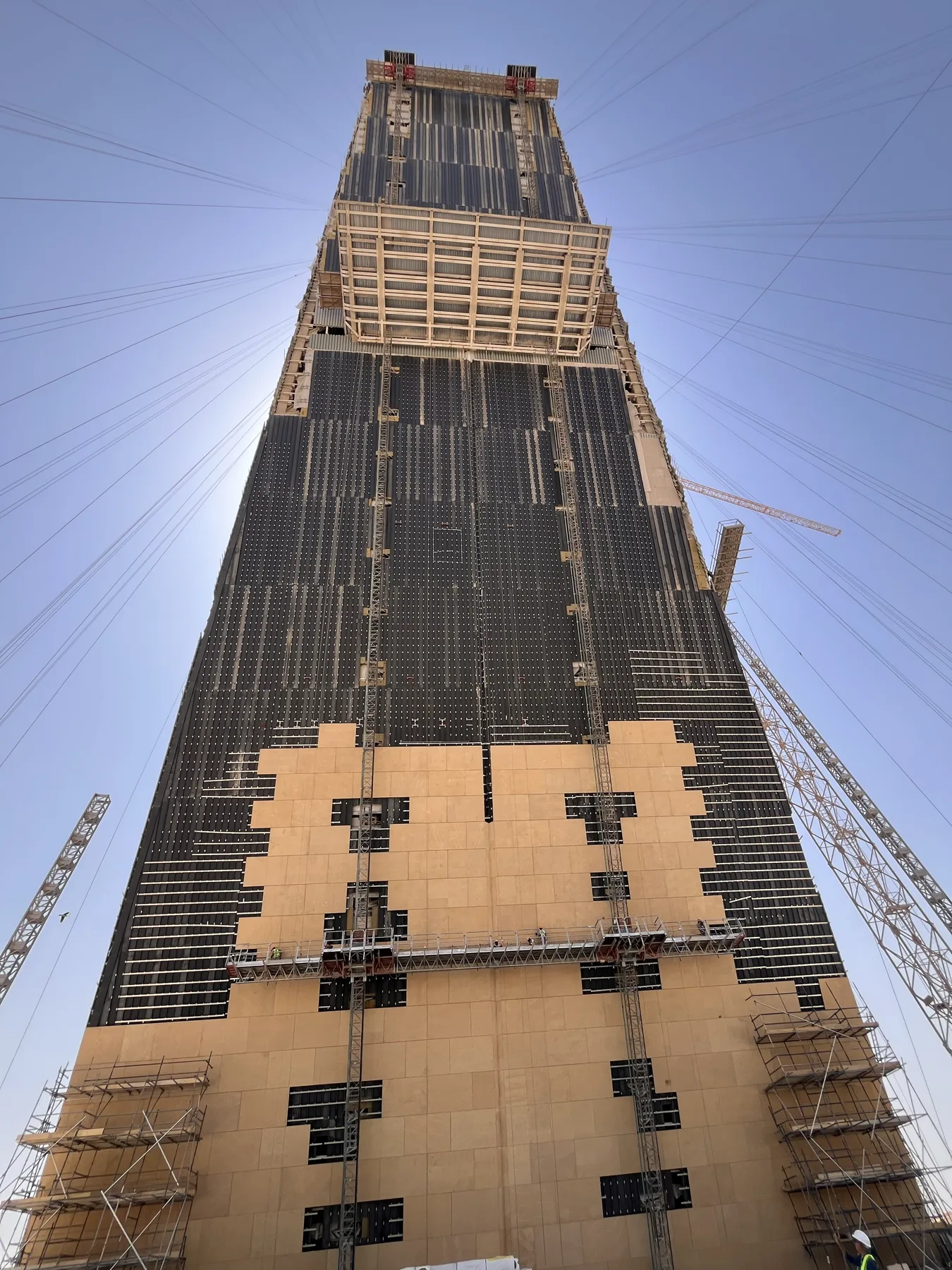

King Salman Park, the tower. Being clad from the bottom up. — **King Salman Park, the tower**Being clad from the bottom up.

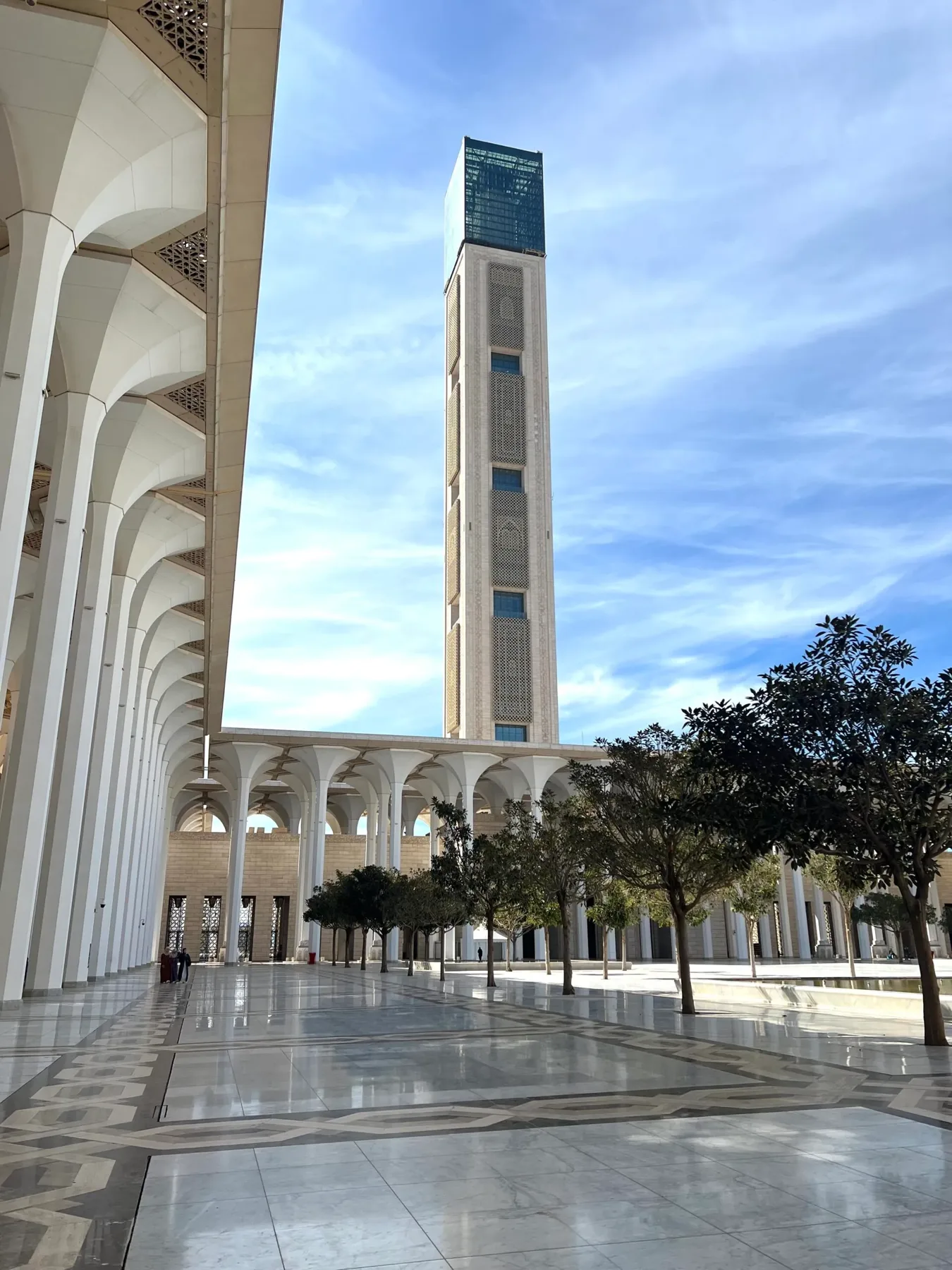

Grande Mosquée d’Alger. Algiers, Algeria. Façade in Venus limestone. — **Grande Mosquée d’Alger**Algiers, Algeria. Façade in Venus limestone.

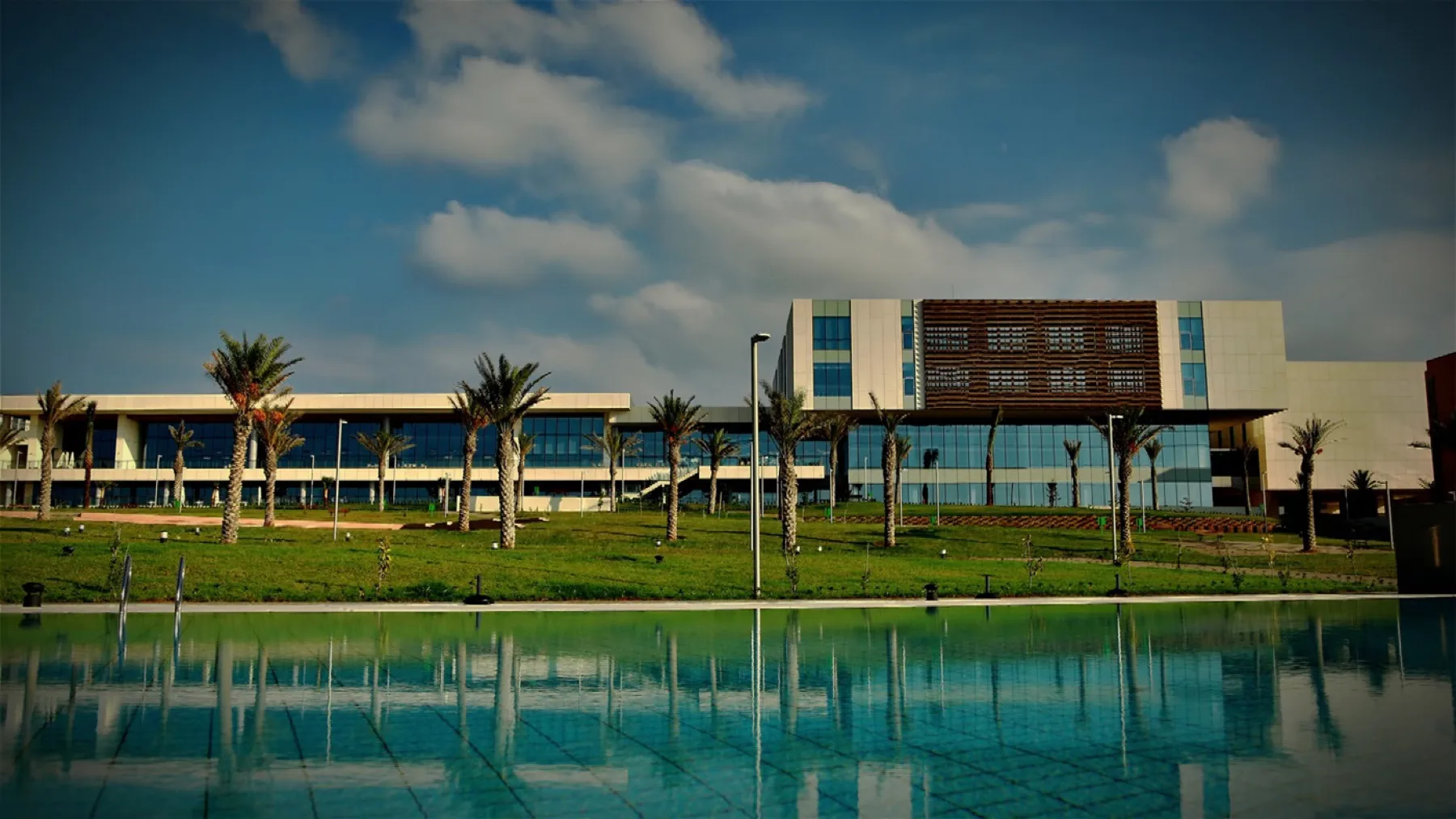

École Supérieure d’Hôtellerie et de Restauration. Algiers, Algeria. Façade in Venus limestone. — **École Supérieure d’Hôtellerie et de Restauration**Algiers, Algeria. Façade in Venus limestone.

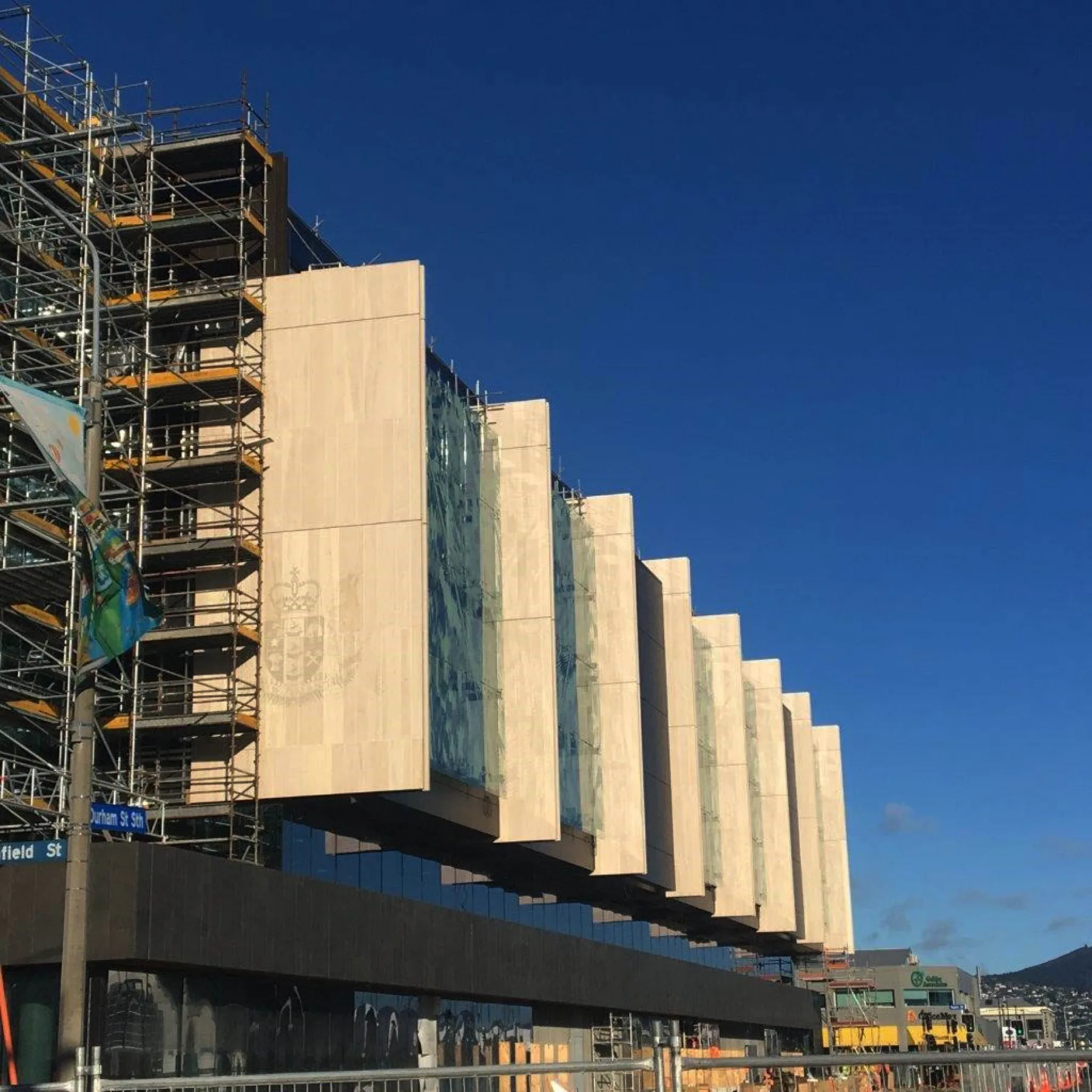

Ministry of Justice. Christchurch, New Zealand. Façade in Moka limestone. — **Ministry of Justice**Christchurch, New Zealand. Façade in Moka limestone.

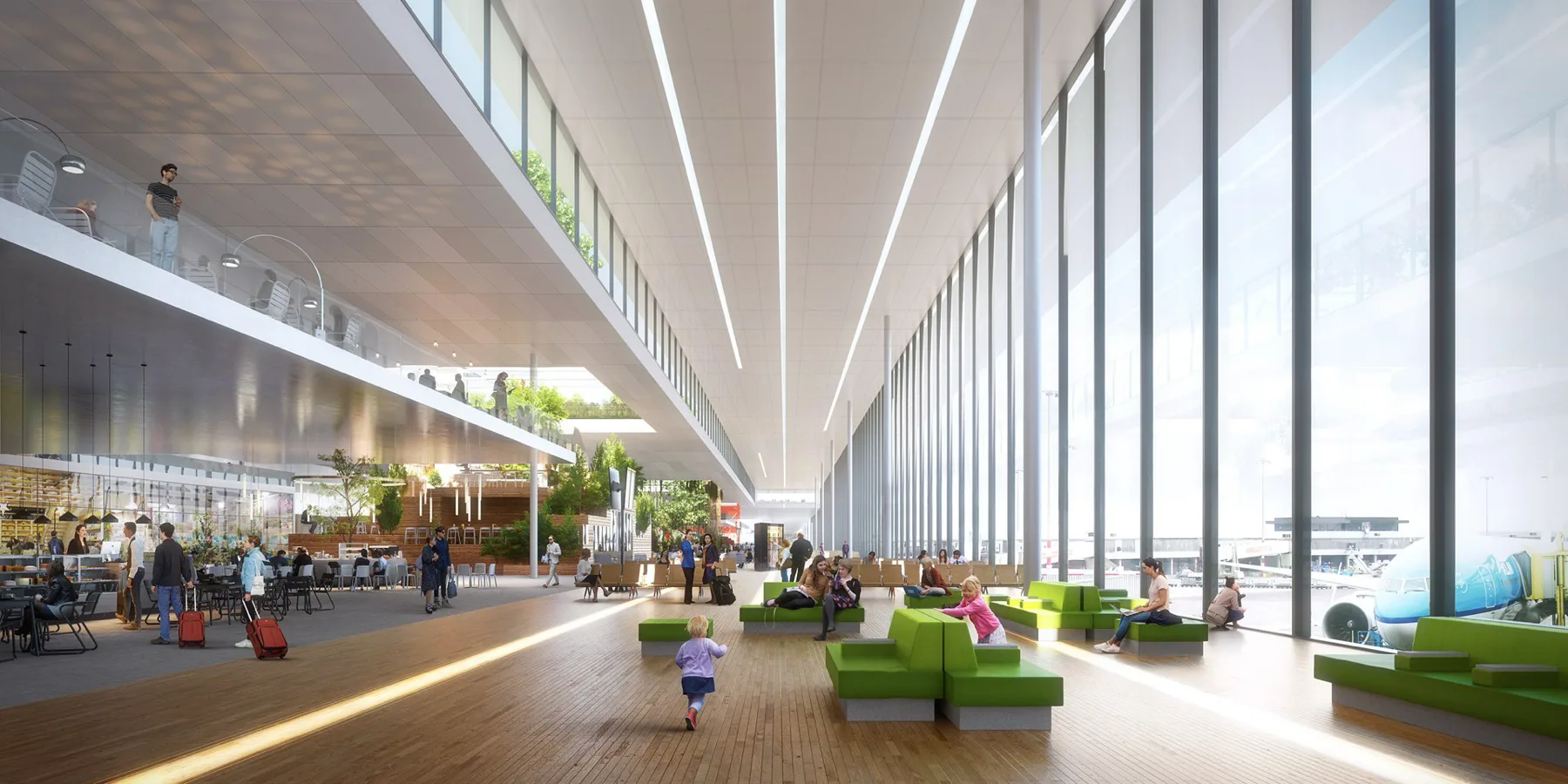

Schiphol Airport. Amsterdam, the Netherlands. Interiors in Lait limestone. — **Schiphol Airport**Amsterdam, the Netherlands. Interiors in Lait limestone.

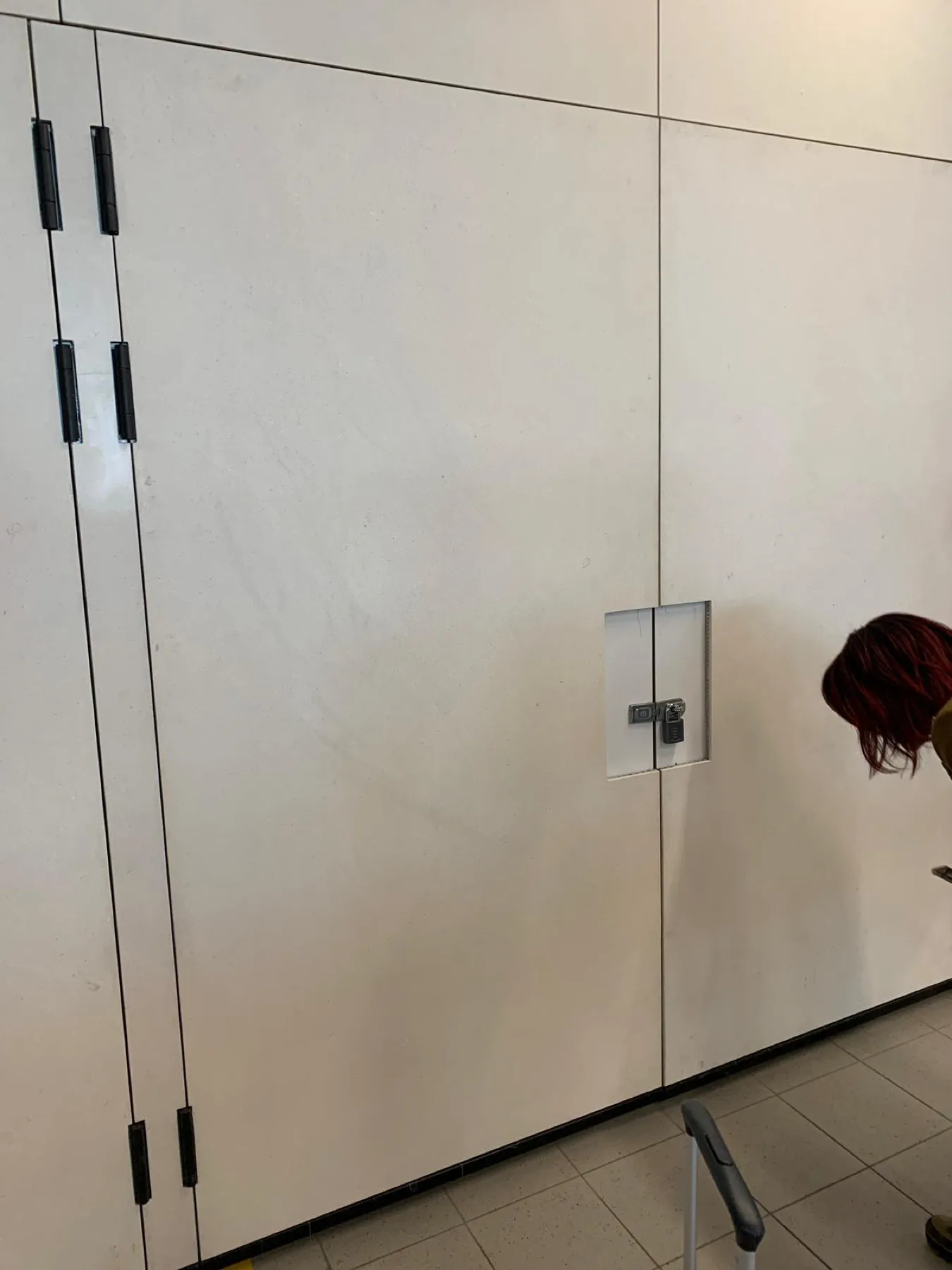

Schiphol, inside. Doors and access panels dressed in stone: they open because they weigh so little. — **Schiphol, inside**Doors and access panels dressed in stone: they open because they weigh so little.

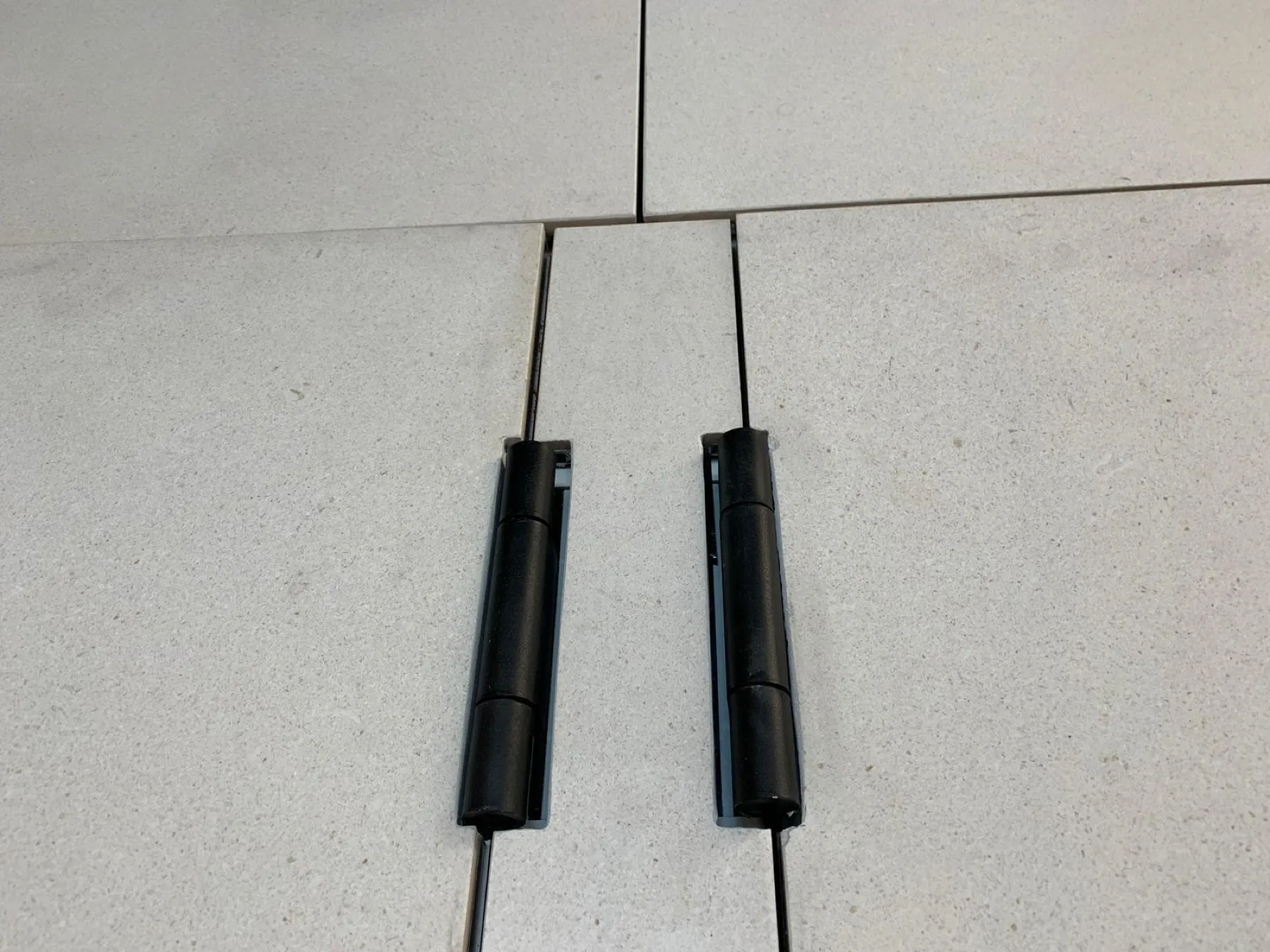

Schiphol, the detail. The hinge close up, on the same cladding. — **Schiphol, the detail**The hinge close up, on the same cladding.

Hotel in Latin America. The onyx panels before they leave the workshop. — **Hotel in Latin America**The onyx panels before they leave the workshop.

A closer look.

Figures from the AEROSTONE technical datasheet, with their UNE and EN standards. Each thickness has its own performance, and it changes with the stone and the core. Made to measure.

Does Aerostone fit your project?

Formats, thicknesses and performance are adjusted to what the job needs. Ask for the technical information.
